| Specifications | iStir OH 15 Prime | iStir OH 20 Prime | iStir OH 40 Prime |
| Motor Type | Brushless DC | Brushless DC | Brushless DC |
| Capacity | 20 L | 25 L | 40 L |
| Speed Range | 50-1000 RPM | 50-2000 RPM | 50-1000 RPM |
| Torque | 15 Ncm | 20 Ncm | 40 Ncm |
| Viscosity | 8,000 mPas | 10,000 mPas | 30,000 mPas |
| Timer | 1 min to 99 hr 59 mins & infinity mode | 1 min to 99 hr 59 mins & infinity mode | 1 min to 99 hr 59 mins & infinity mode |
| Direction of Rotation | Reversible – CW/CCW | Reversible – CW/CCW | Reversible – CW/CCW |
| Protection Class | IP 54 | IP 54 | IP 54 |
| Dimension(Head) | 79 x225 x 179 mm | 79 x225 x 179 mm | 79 x225 x 179 mm |
| Weight | 1.7 kgs | 1.7 kgs | 1.7 kgs |
| Motor Type | Brushless DC | Brushless DC | Brushless DC |
| Capacity | 20 L | 25 L | 40 L |
| Speed Range | 50-1000 RPM | 50-2000 RPM | 50-1000 RPM |
| Manufacturer | Neuation | ||

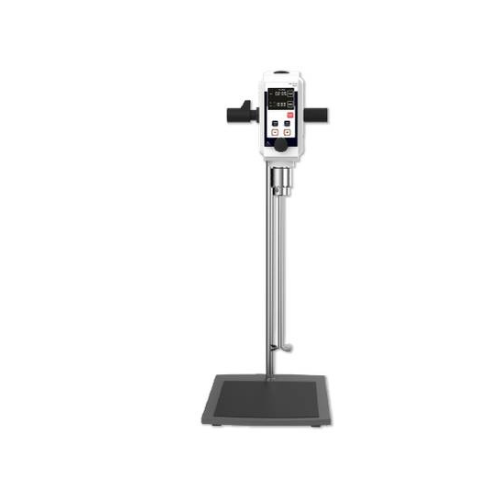

iStir OH Prime
iStir OH Prime are controlled and built to handle viscosity ranging from light watery solution to high viscous fluids that delivers variable speed up to 2000RPM. Featuring Intelligent design and High performance components.
Features
- Brushless DC motor for quiet operation and maintenance free long operation
- Microprocessor controlled for maintenance of accuracy even with viscous liquid
- Viscosity up to 30,000 mPas & 40 L volume
- Adjustable speed ranging from 50 Up to 2000 RPM
- Long timer setting from 1min to 99 hours 59 mins & continuous mode
- With reversible mixing motion – CW/CCW
- Large digital display for all the parameters at one glance
- Uninterrupted operation through Smart control
- Safety cut for overload, over current & over temperature – safety cut
- Counter reaction to speed change
- Push through shaft for viscous liquid or smaller vessels
