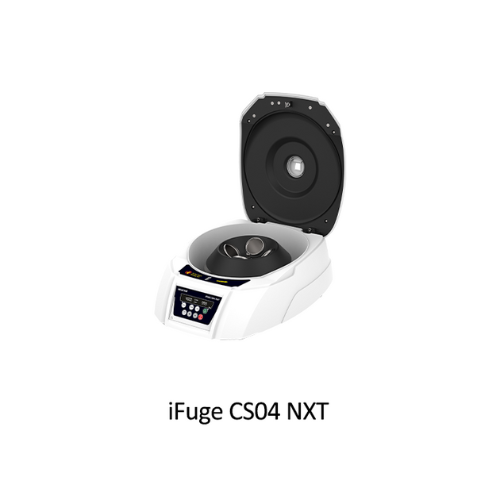

iFuge CS04 NXT

Experience versatility with the iFuge CS04 NXT, offering multiple rotor options to accommodate a diverse range of sample sizes. Its compact footprint addresses space constraints in laboratories without compromising functionality. Packed with class-leading features, including a motorized latch, favourite mode, and microprocessor-controlled BLDC motor, the device ensures unprecedented convenience and ease-of-use, prioritizing both efficiency and safety.

Features

  • Variable Speed Selection From 500 to 4000 RPM (In Steps Of 10 RPM)
  • Motorized latch with more strength and reliability
  • Unique Rotor design – allows the use of 100 ml swing in a smaller compact unit.
  • Lid lock safety – Lid releases (automatically) after run completion
  • Timer setting from 1-999 minutes & infinite mode
  • Programming feature: User can save and run up to 99 defined programs (protocols)
  • All rotors come with positional labelling, rotor cat-code, rotor expiry date, RPM/RCF(speed), rotor capacity
Contact Us
Specifications iFuge CS04 NXT
Rotor Type Fixed and Swing
Maximum Speed RPM 4000
Maximum Volume 400 ml (4×100 ml)
Motor Type Brushless DC Motor (BLDC)
Display Large Display
Speed Setting 500-4000 RPM
Speed Accuracy ± 100 RPM (in with load)
Timer Setting 1 to 999 min, infinite mode
Acceleration Time 60 sec (± 10 sec)
Deceleration Time 150 sec (± 10 sec)
Imbalance Detection Automatic
Noise Level ≤ 65dB (A)
Dimensions (W x D x H) in mm 381x 480 x 220 mm
Weight 16.6 kg
Power Adaptor Details Input: 100 – 240VAC, 50/60Hz Output: 48V 3A
Power Consumption 120 W
Manufacturer Neuation
